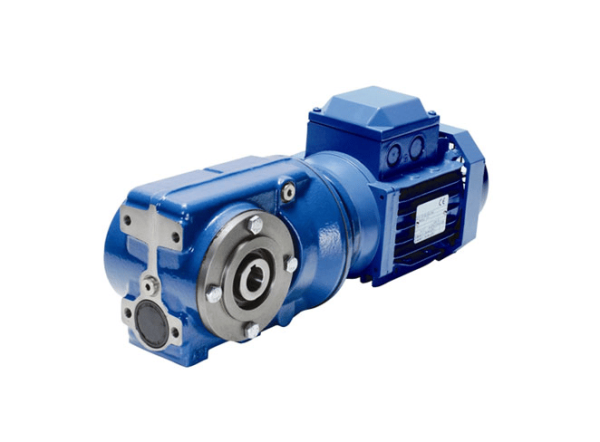

Series C right angle helical worm geared motors and reducers provide a highly efficient and compact solution to meet requirements up to 60HP with maximum output torque capacity of 88,500 lb.in.   The Series C range of helical worm units form a part of a long line of power transmission drives which are known for their top quality design and technical solution, along with the use of high quality materials and components. The 8 sizes of this type of geared motors and reducers offer high load carrying capacity, increased efficiency, quiet running and reliability. These units are manufactured and assembled from a family of modular kits for distributor friendliness thereby minimizing inventory and making the product readily available. Available with plug in output shaft and bolt on flanges, adding flexibility to the range. Can be supplied as double, triple, quadruple and quintuple reduction units in flange or foot or shaft mount arrangement. Available as complete geared motor, motor ready (to accept clients own NEMA/ IEC motor) or as a reducer with a keyed input shaft. All gear cases are cast iron.

Unit Sizes	03, 04, 05, 06, 07, 08, 09, 10
Input Power	Up to 50 HP (45 kW)
Output Torque	Up to 76,700 lb.in (8,700 Nm)
Gear Ratios	From 8:1 to 250:1 in a double unit and 14,000:1 in combined units
Motor Sizes	NEMA Frames from 56 to 320; IEC Frames from 63 to 225
